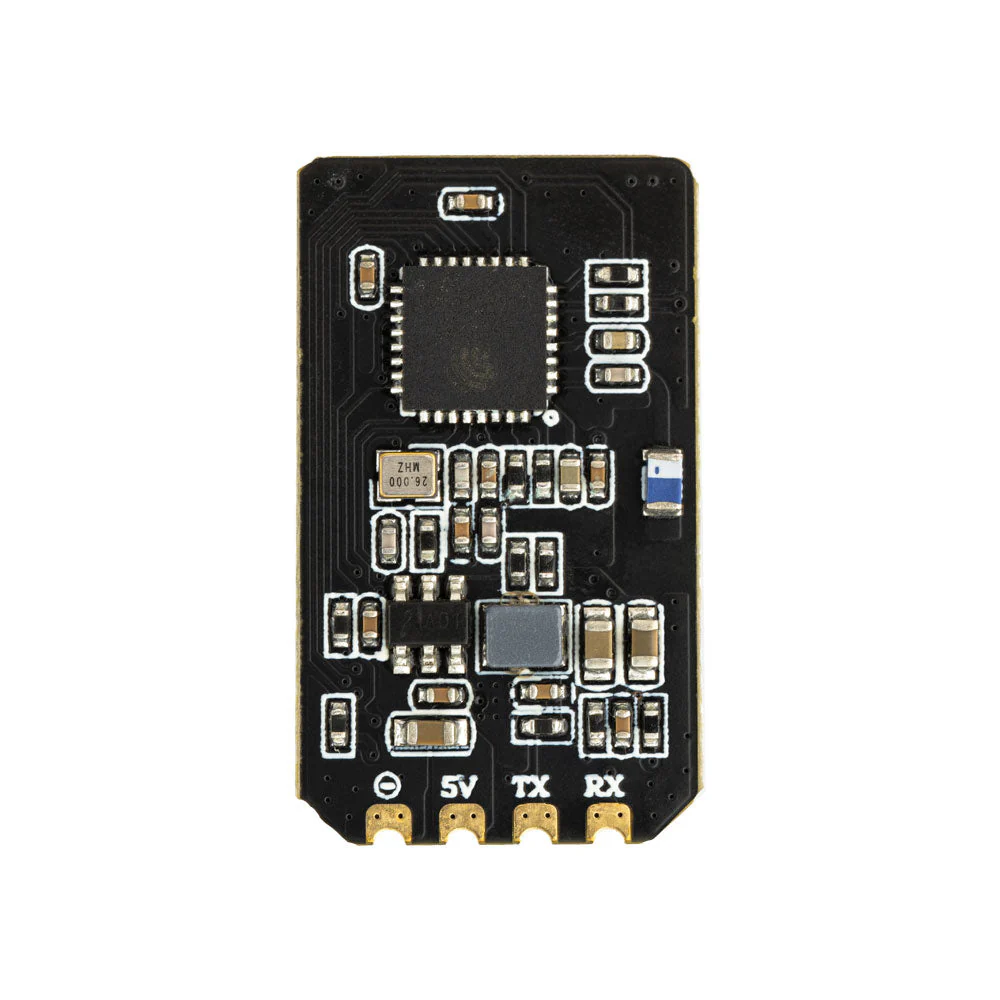

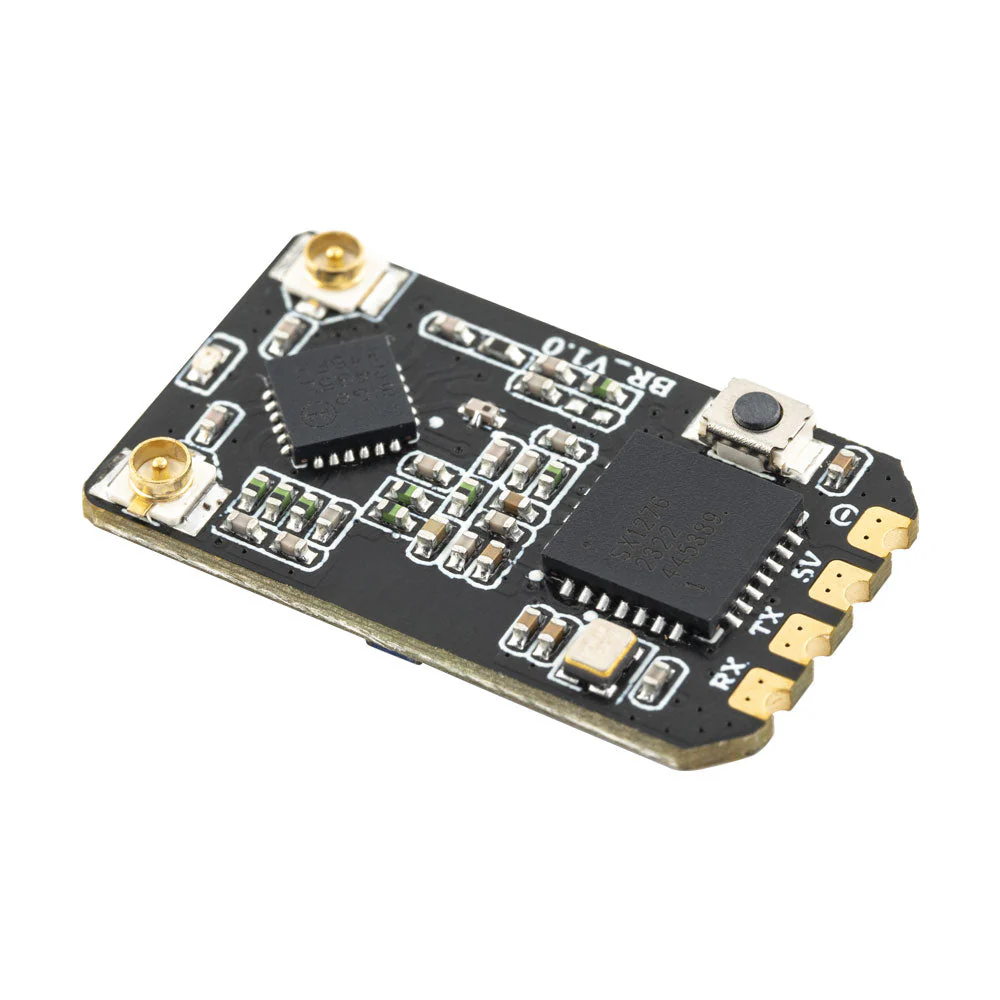

Bandit BR3 ExpressLRS 915MHz Receiver

The RadioMaster Bandit BR3 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR3 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for applications. The Bandit BR3 ExpressLRS Receiver features an ESP8285 MCU and the SX1276 RF chip, known for low latency, high sensitivity, and excellent RF performance. The included high-sensitivity T Antenna is lightweight and easy to install, allowing flexible placement based on your needs.

Thanks to its low-latency, high-refresh-rate RF architecture, the Bandit BR3 ExpressLRS Receiver is perfect for applications that require precise control, quick response, and reliable link quality.

Features

• Maximum 500mW telemetry RF power
• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Dual 915/868MHz T Antenna for improved signal stability and range

Specifications

• Item: Bandit BR3 ExpressLRS Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF power: 100mW - 500mW LUA Adjustable
• Antenna: 915/868MHz T Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 4.5-8.4V
• Dimension: 24*14.2mm

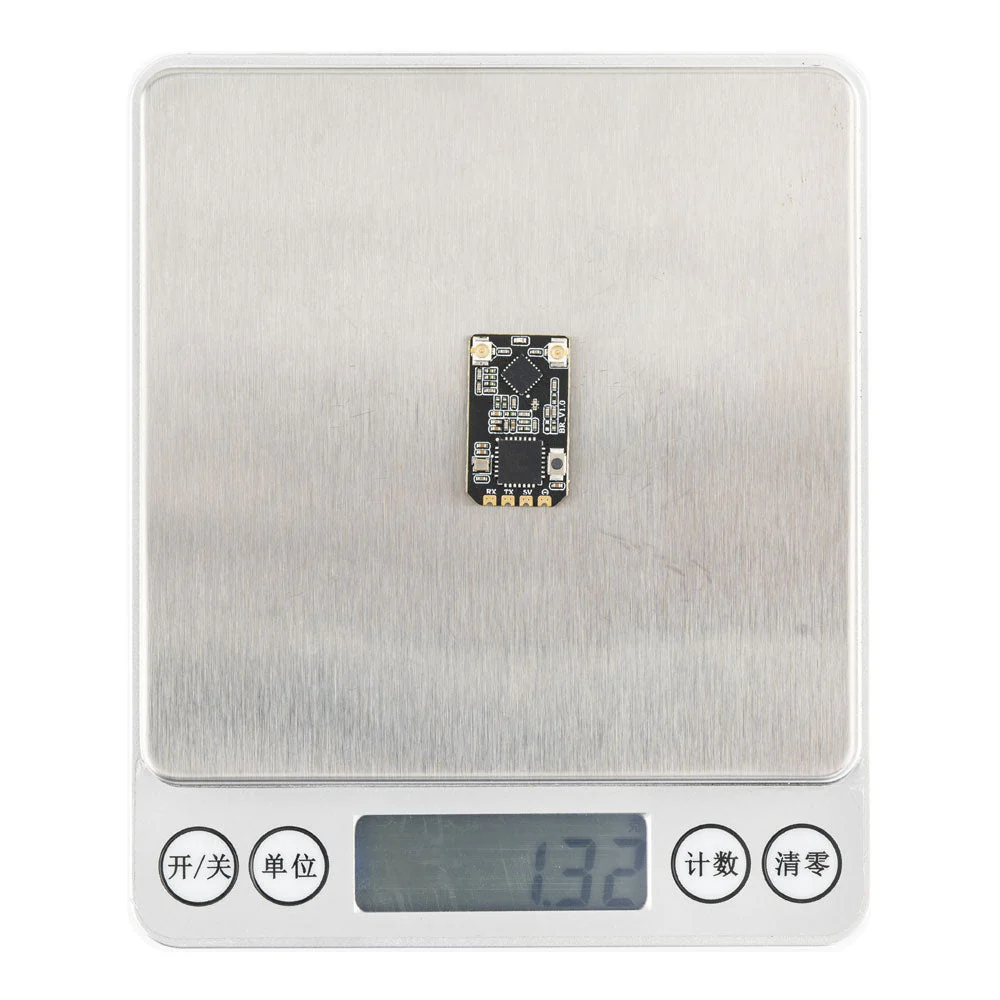

• Weight: 5.5g (with antennas)

Dimensions

Bandit Series

• Bandit ExpressLRS RF Module
• Bandit Micro ExpressLRS RF Module
• Bandit Nano ExpressLRS RF Module
• Bandit BR1 Receiver
• Bandit BR3 Receiver
• Bandit MOXON Antenna
• Bandit T Antenna
• UFL 915Mhz T & Y Antenna for BR Series Receiver

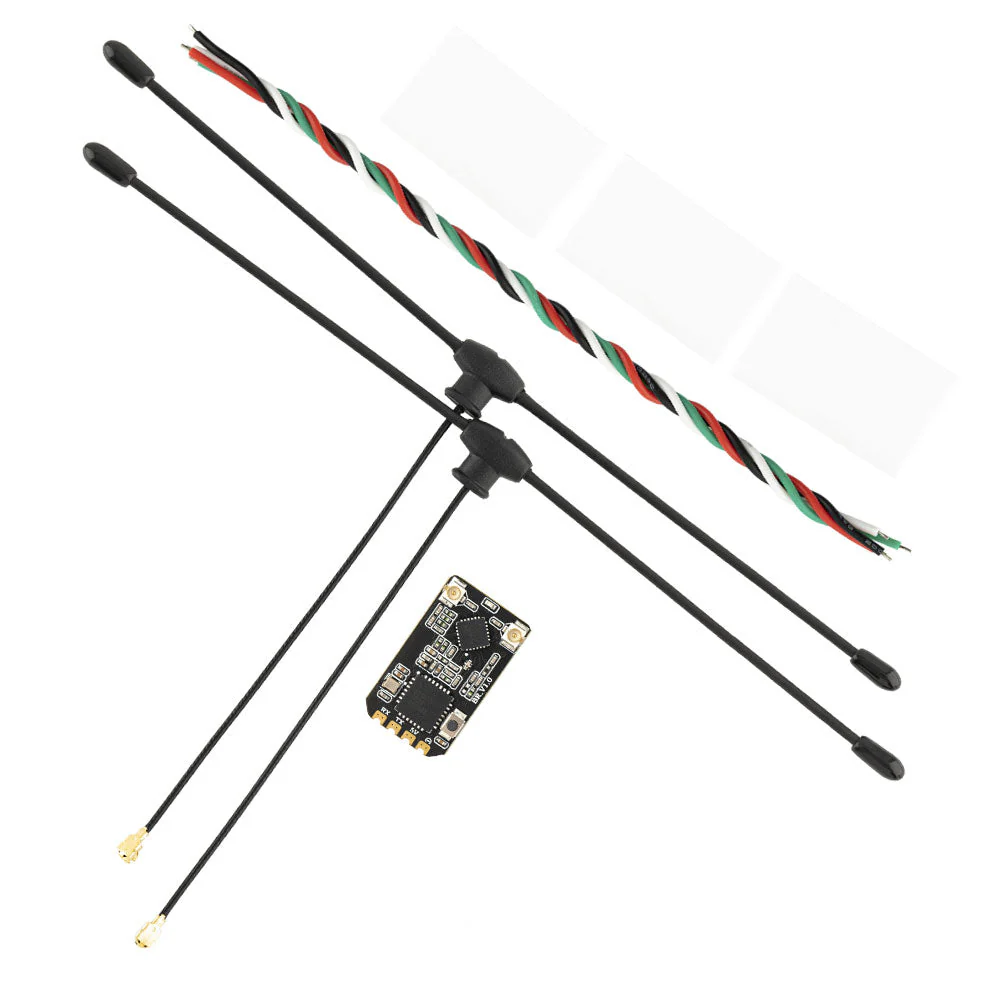

Package Includes

• 1 * Bandit BR3 Expresslrs Receiver
• 2 * T Antenna (Installed on Receiver)
• 3 * Receiver Shrink Tube Sleeves
• 1 * CRSF Wire
• 1 * Manual
