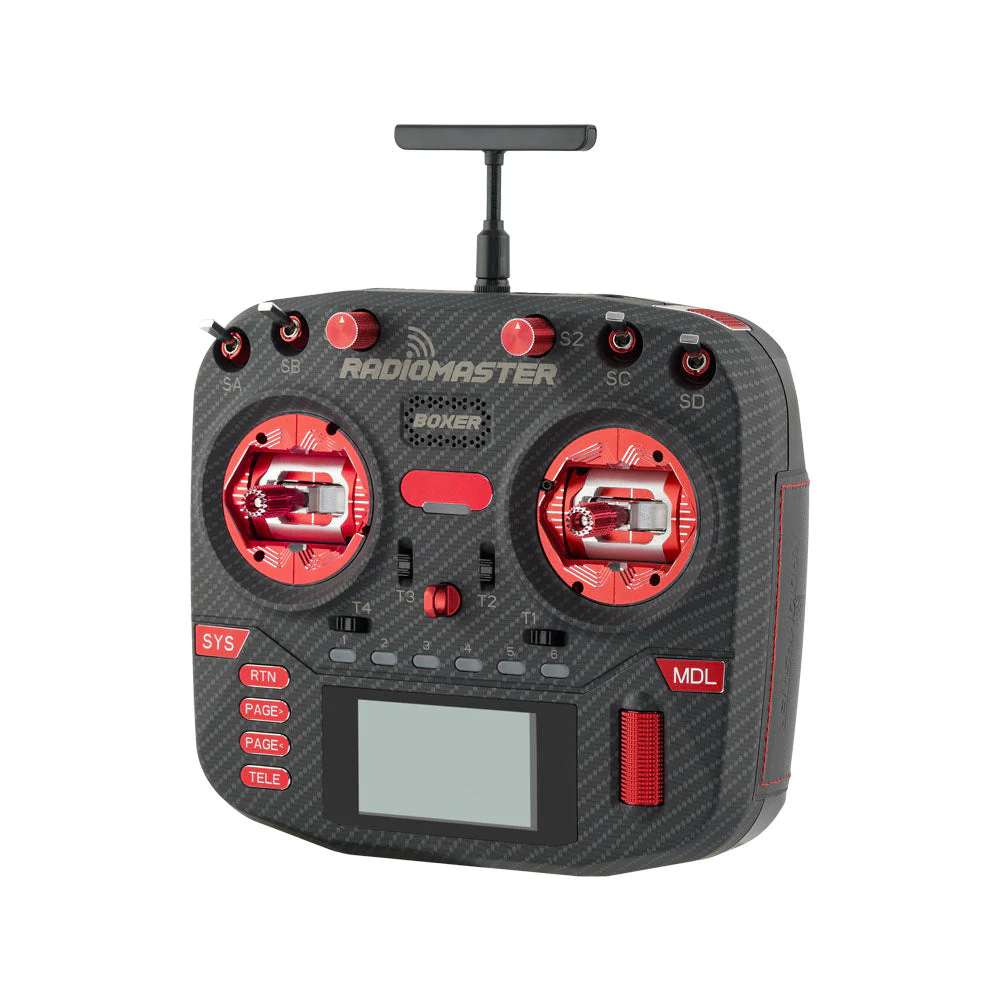

Boxer Max Radio Controller (M2)
Introducing the Boxer Max Radio - a high-performance remote control with a sleek carbon fiber-patterned case. The Boxer Max comes standard with upgraded billet aluminum AG01 hall effect gimbals and CNC buttons and roller, ensuring a high-quality feel. The adjustable-length CNC metal folding handle and upgraded leather grips provide a comfortable grip for extended use. With all these features, the Boxer Max Radio is the perfect choice for those seeking superior performance, comfort, and a premium feel.
Launch Video
Features

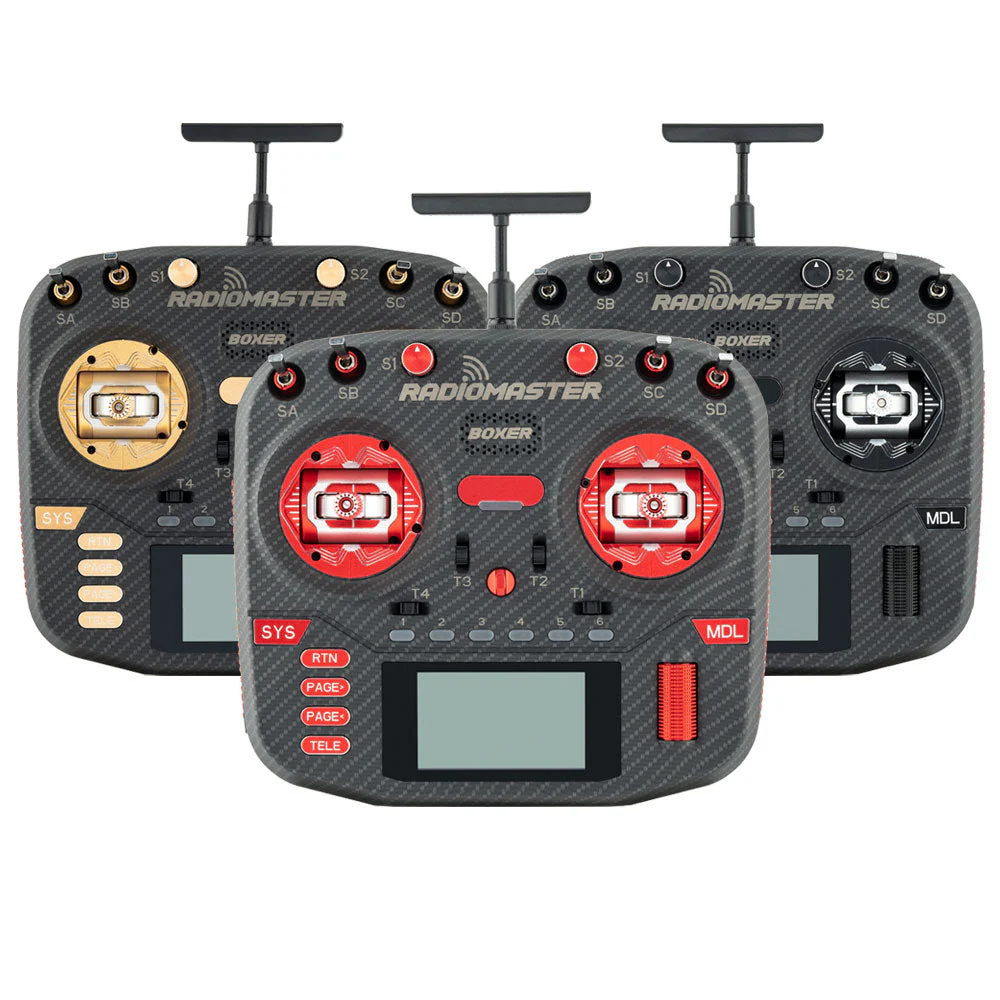

- Optional 3 colors - Black/Red/Gold

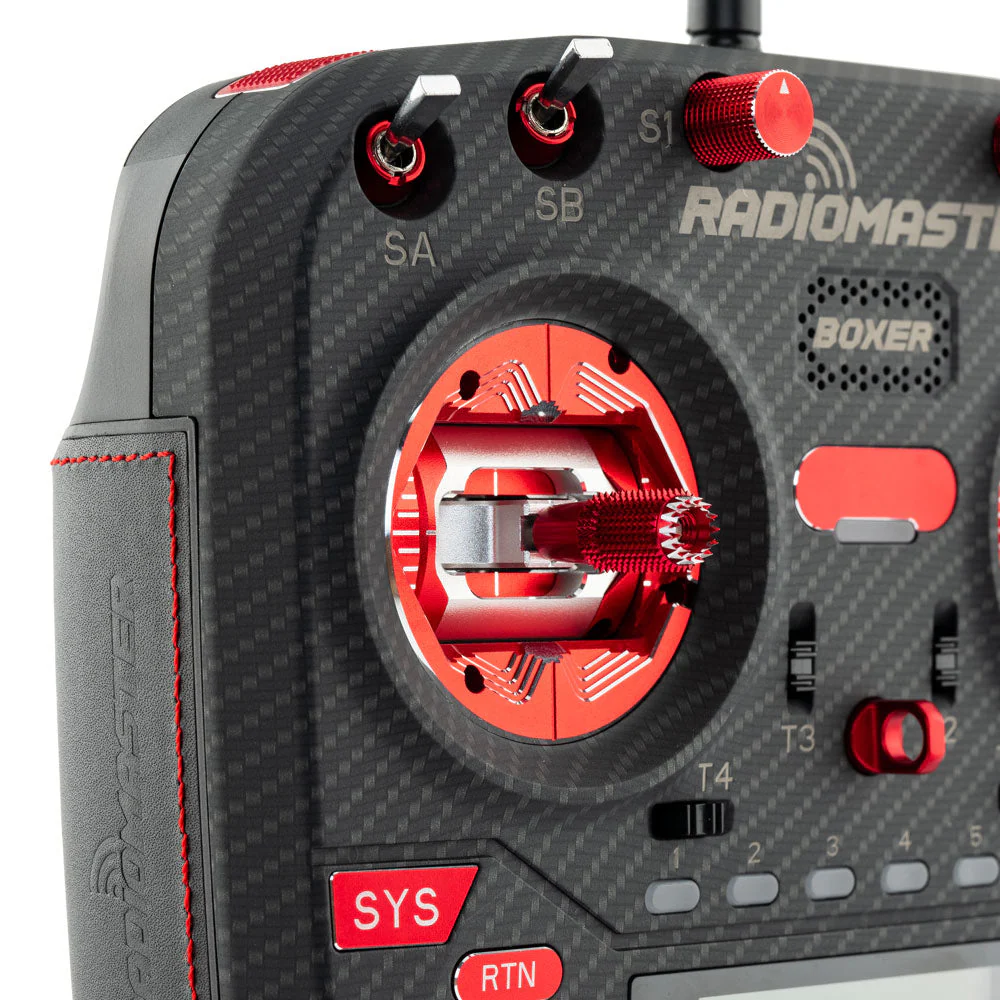

- CNC Aluminum AG01 Hall-effect Gimbal
- Carbon fiber pattern case
- CNC buttons and roller as standard

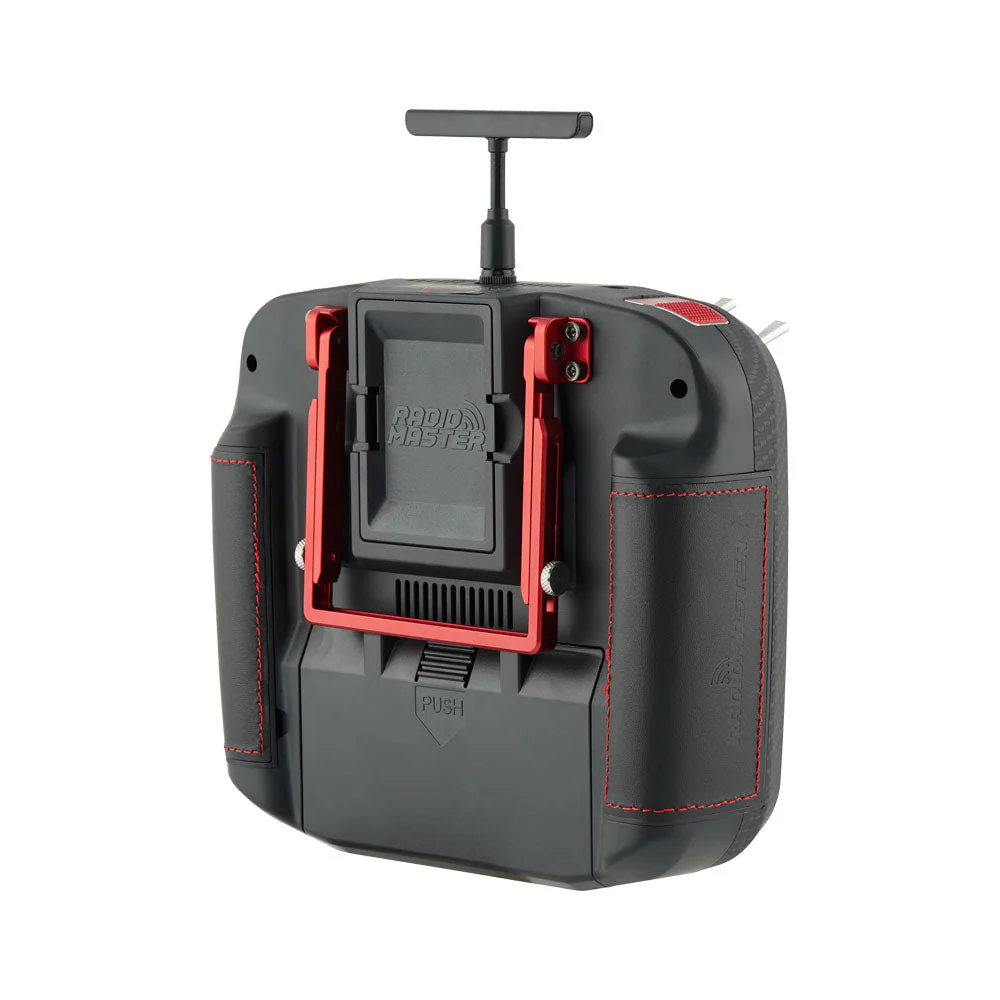

- Adjustable length CNC metal folding stand
- Upgraded black leather grips
- Available with built-in ExpressLRS Backpack
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics

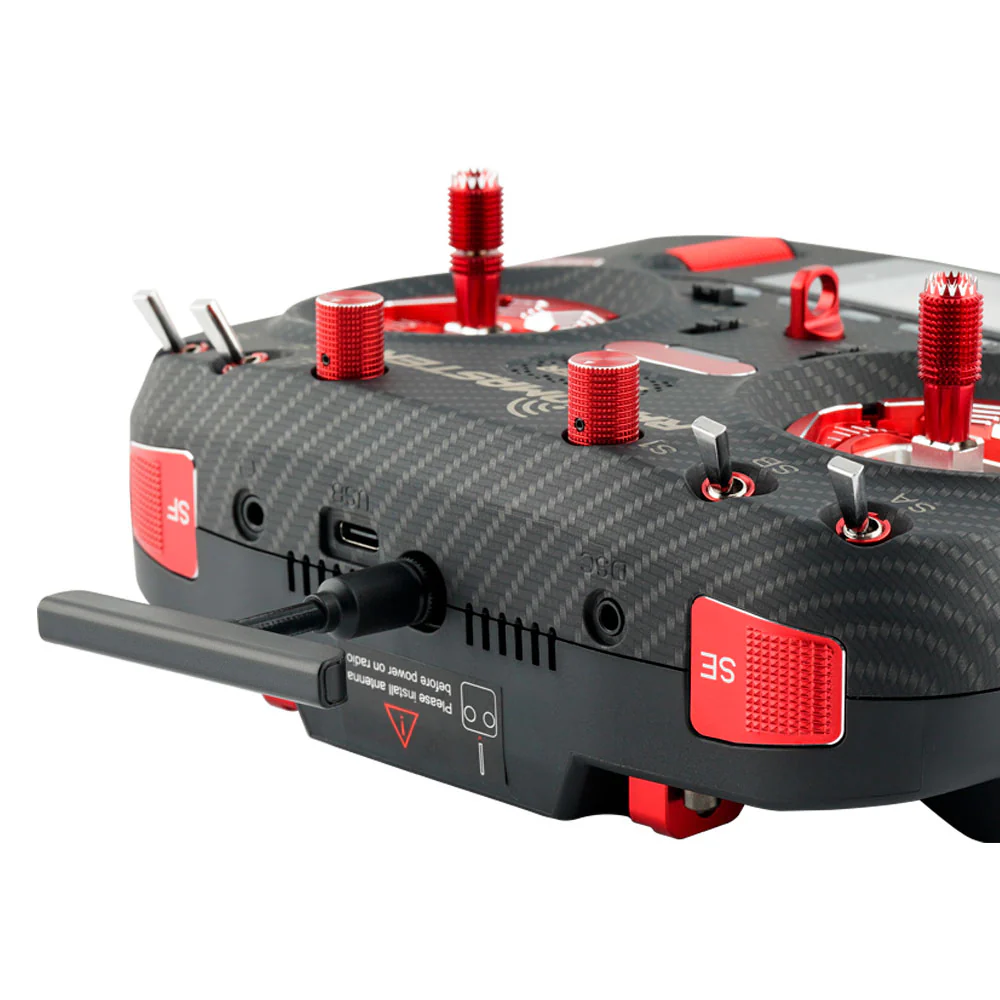

- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile programable 6-position switch

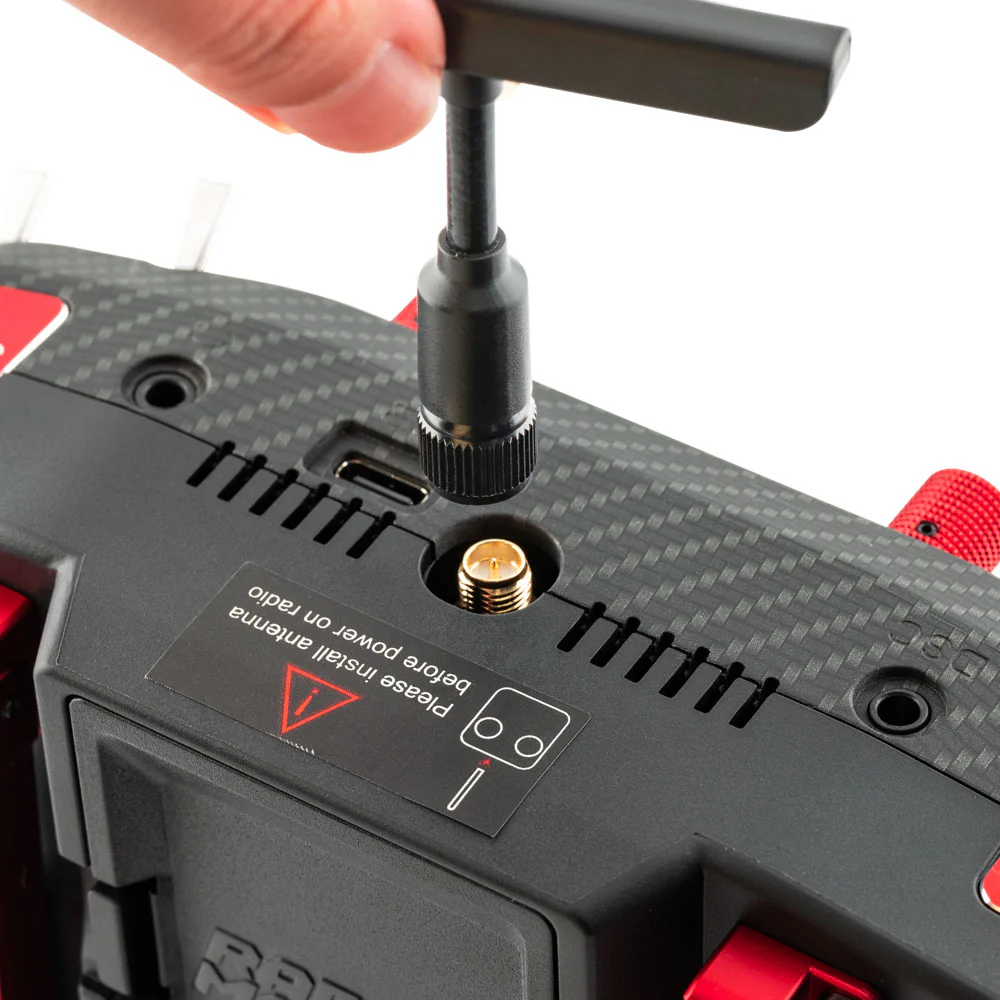

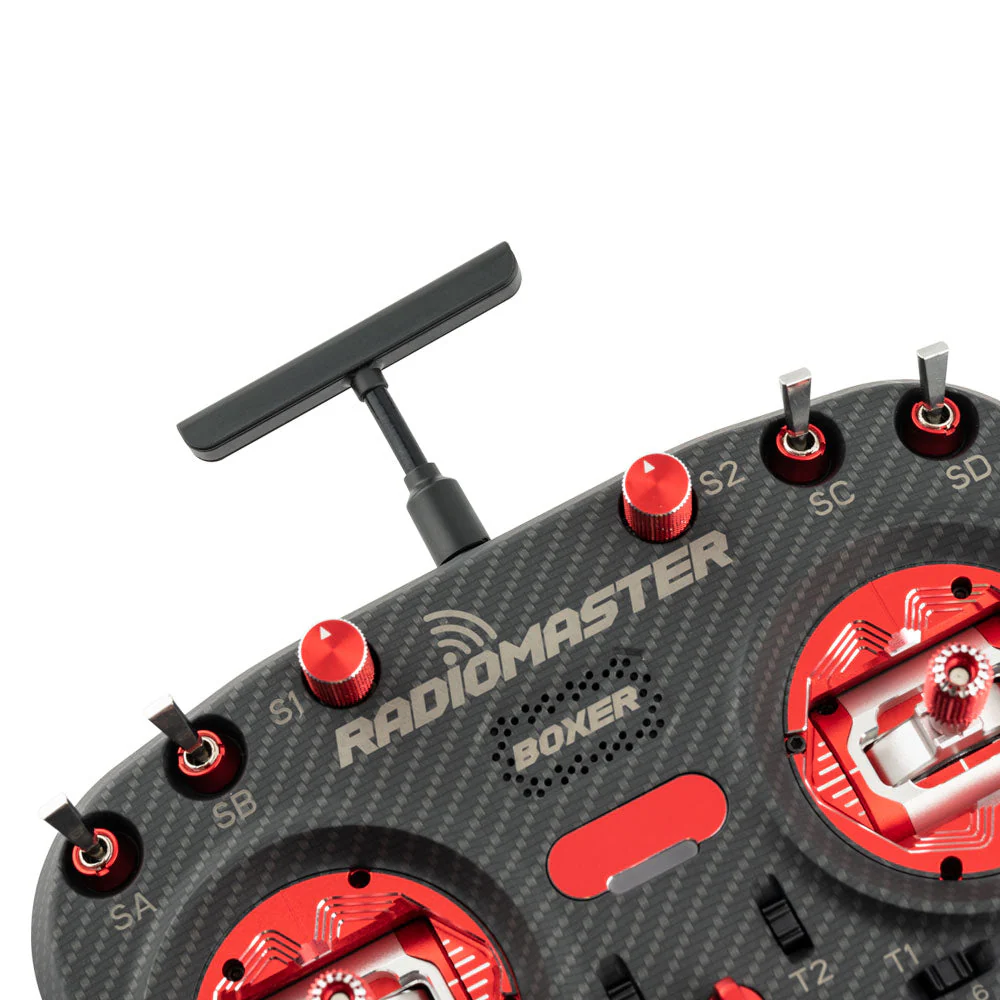

- Adjustable and Removable T-shape Antenna
- Changeable, ergonomic grips
- Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications
- Item: BOXER Max Radio
- Color: Black/Red/Gold
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Supported protocols: Module dependent
- Cooling fan: Built in (ELRS version)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: AG01 CNC Hall Gimbal
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: Radiomaster neck strap and CNC adjustable stand
EdgeTX Operating System and ExpressLRS RF system pre-installed
Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
Download
Associated Products

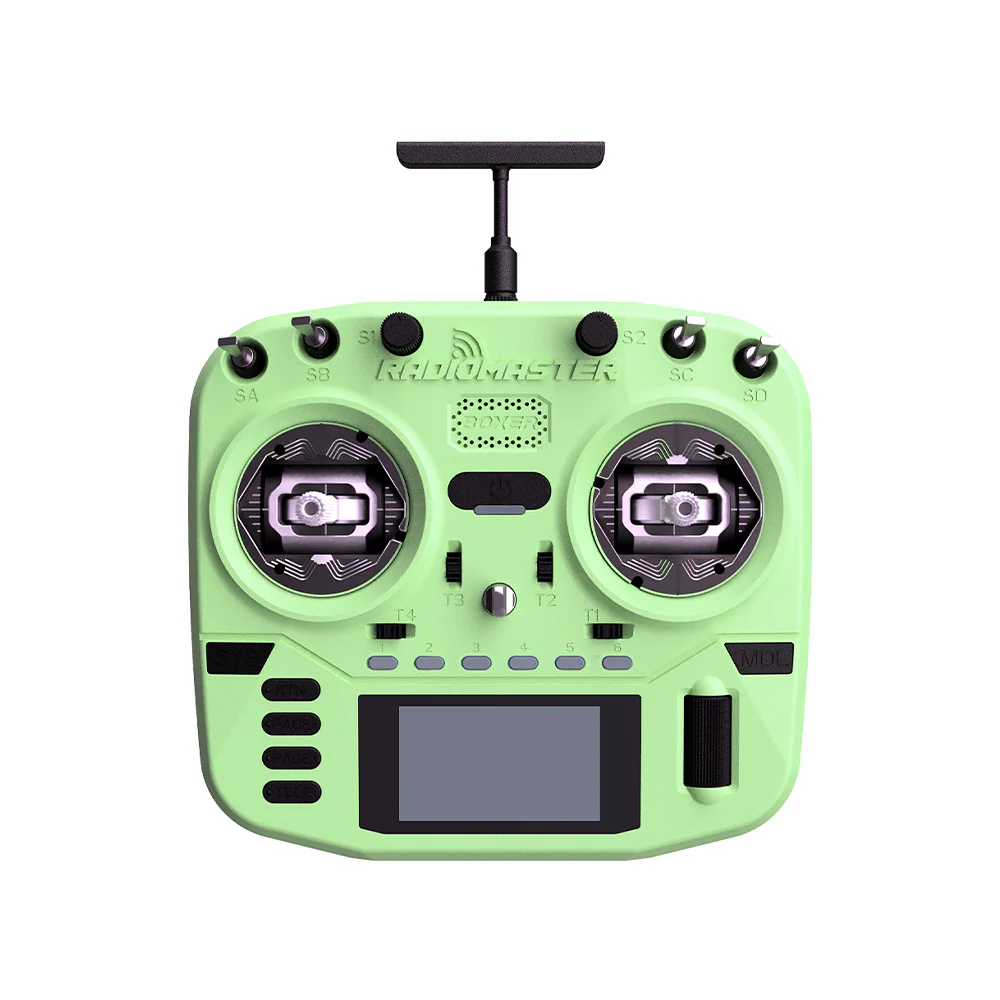

- Boxer Radio Controller
- Boxer Radio Transparent Version
-
2S 7.4V 6200mAh Lipo Battery
- Boxer Leather Grip Black

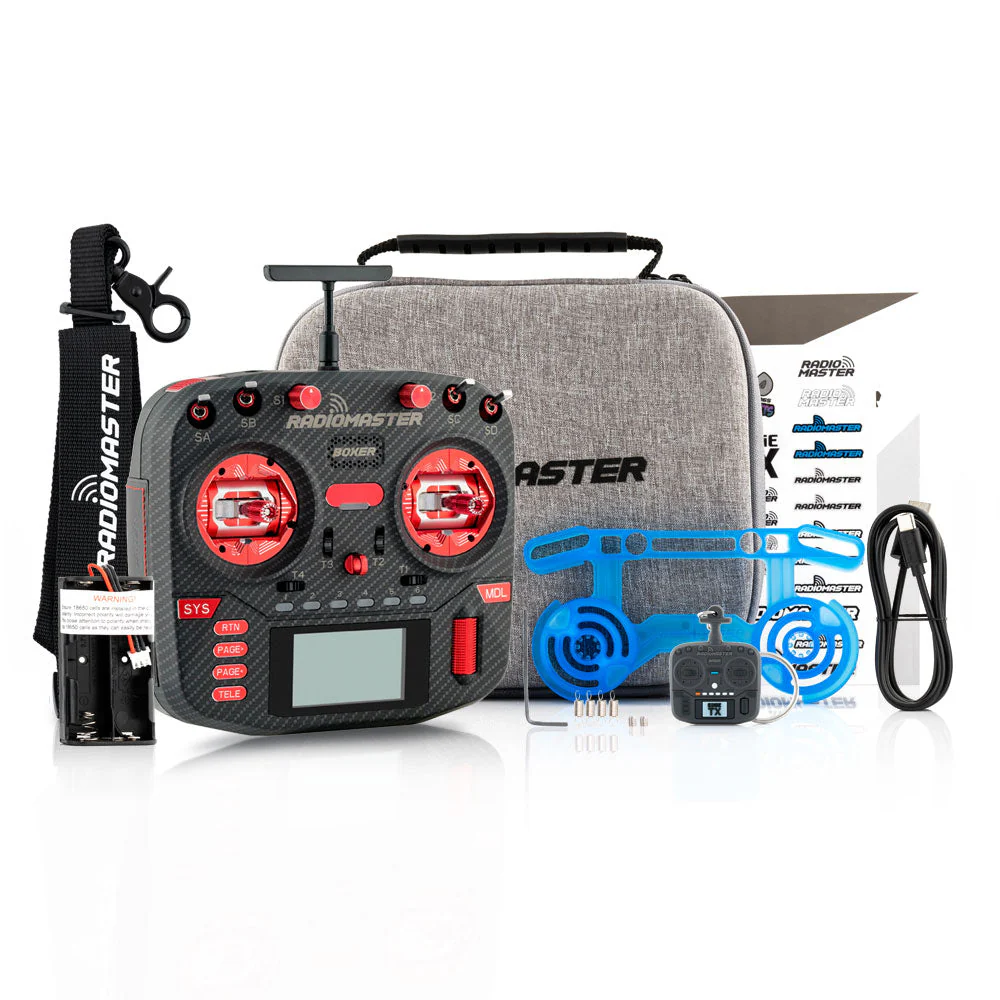

Package Including
- 1 * BOXER Max Radio
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * Stickers
- 1 * Manual
- 1 * 18650 Battery tray (Batteries not included)
- 1 * RadioMaster Neck Strap
- 1 * Boxer KeyChain
- 1 * Screen Protector
Boxer Max is installed with ExpressLRS as standard.
ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.
Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
Find out more about ExpressLRS here
The Boxer Max is now compatible with mLRS!
The mLRS module provides a transparent serial link, making it suitable for a wide range of applications and configurations. Its design delivers exceptional signal integrity alongside a high data rate, striking an optimal balance between performance and reliability.
This versatile system excels in demanding setups where consistent, robust connectivity is essential—ideal for users who value quality, stability, and seamless operation across various projects.
