XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver

Introducing the XR4 XrossBand Receiver – The Pinnacle of compact Dual-Band Performance

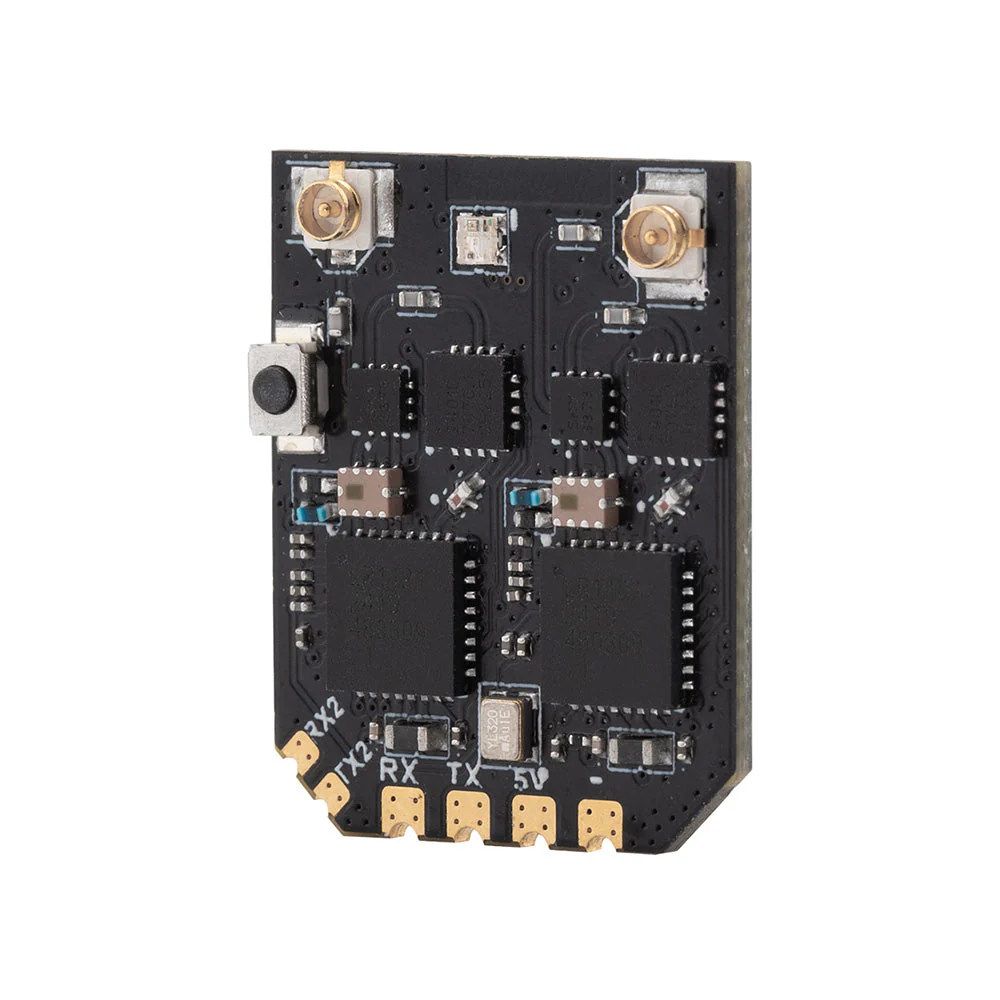

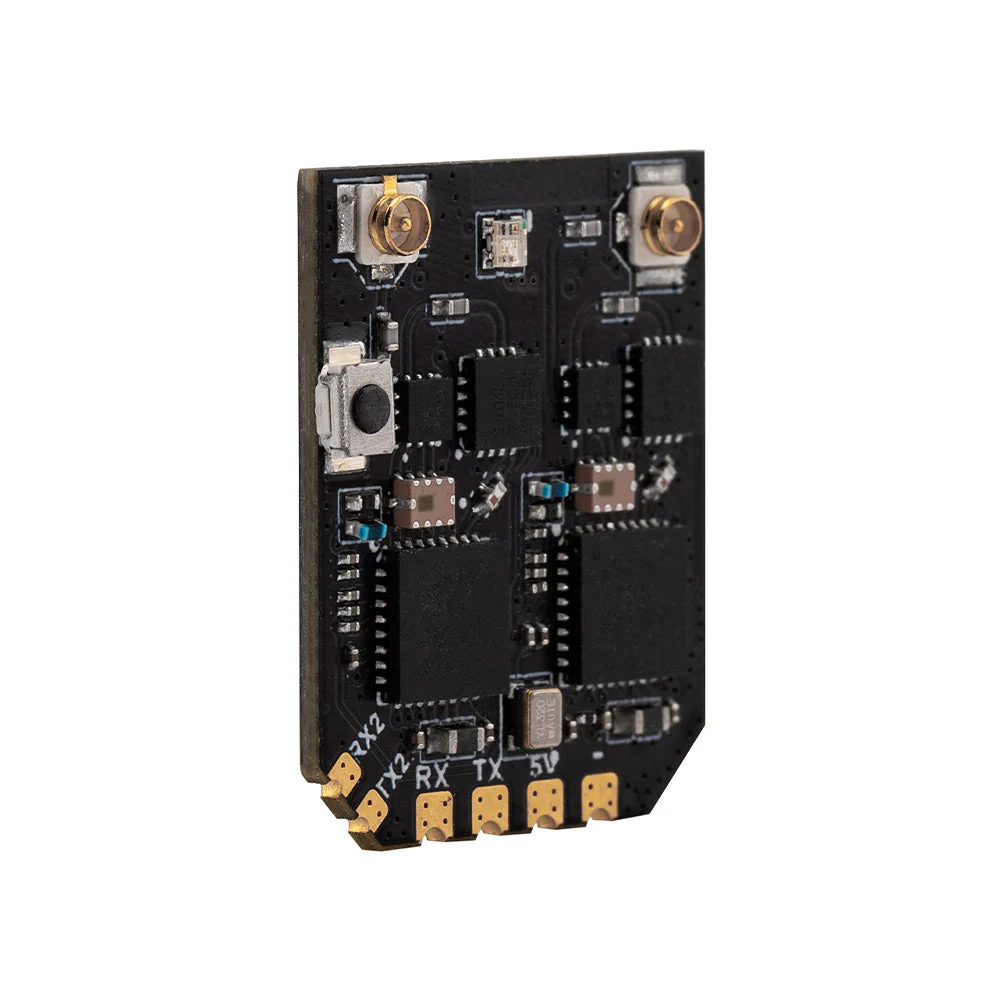

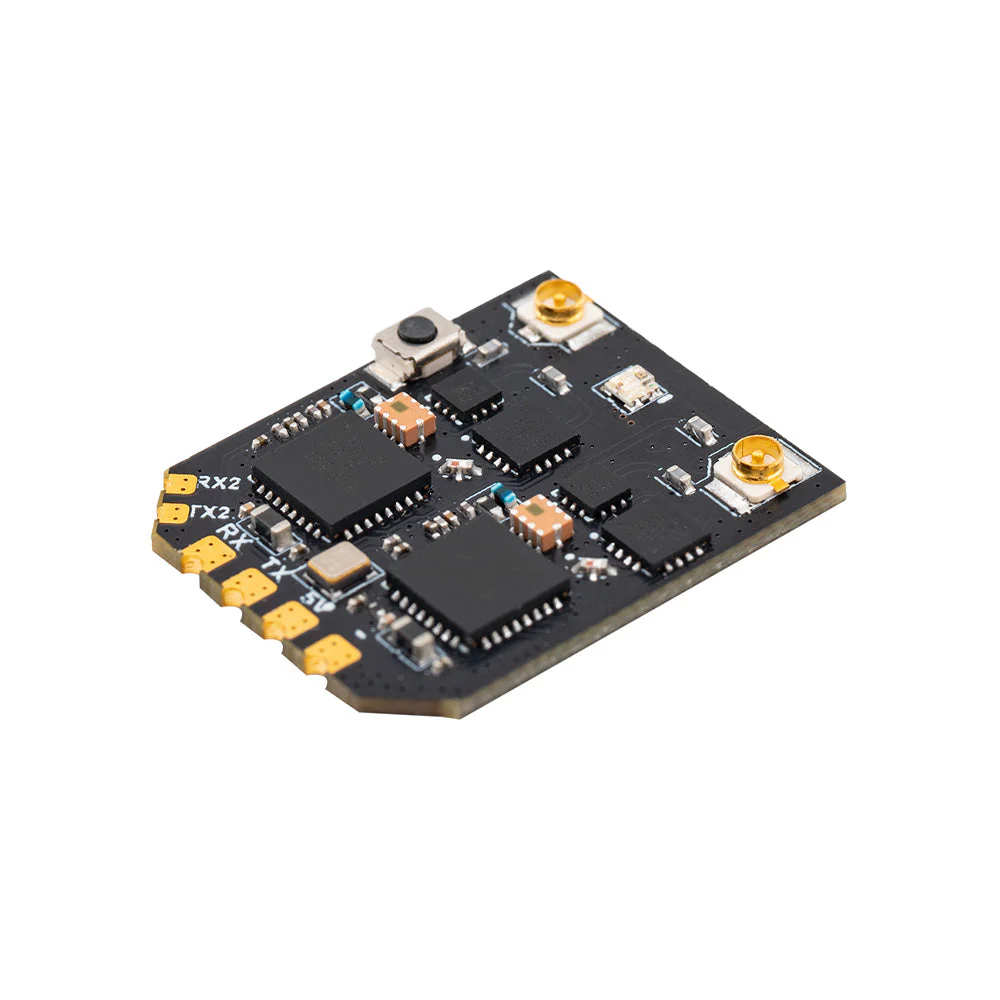

The XR4 Receiver is a cutting-edge true diversity dual-band receiver featuring dual LR1121 RF transceivers, designed to leverage the advanced ExpressLRS Gemini Xrossband protocol (Gem-X). It seamlessly supports both the 2.4GHz and Sub-G 900MHz bands, and its dual T-type antennas provide superior reception sensitivity and connection stability for optimal performance.

Built with two independent RF circuits, the XR4 offers versatile operation modes, allowing you to switch between Gemini single-frequency or Xrossband dual-band modes, and can be tailored to your specific needs. The integrated Wi-Fi module simplifies firmware updates and configuration via a user-friendly WebUI on your PC or mobile device.

With ultra-low latency and a high refresh rate, the XR4 excels in delivering a stable, rock-solid RF link, even in demanding or interference-prone environments. Its compact, lightweight design ensures reliable connectivity in critical situations where every signal matters. The XR4 offers the most secure and robust RF link available, providing unbeatable reliability even under the toughest conditions.

For more details and support, visit expresslrs.org.

Features

• True Diversity & Dual-Band
• Unmatched reliability with ExpressLRS Gemini Xrossband
• Compatible with ExpressLRS 2.4GHz, Sub-G 900MHz, Gemini & Gemini Xrossband (Gem-X)

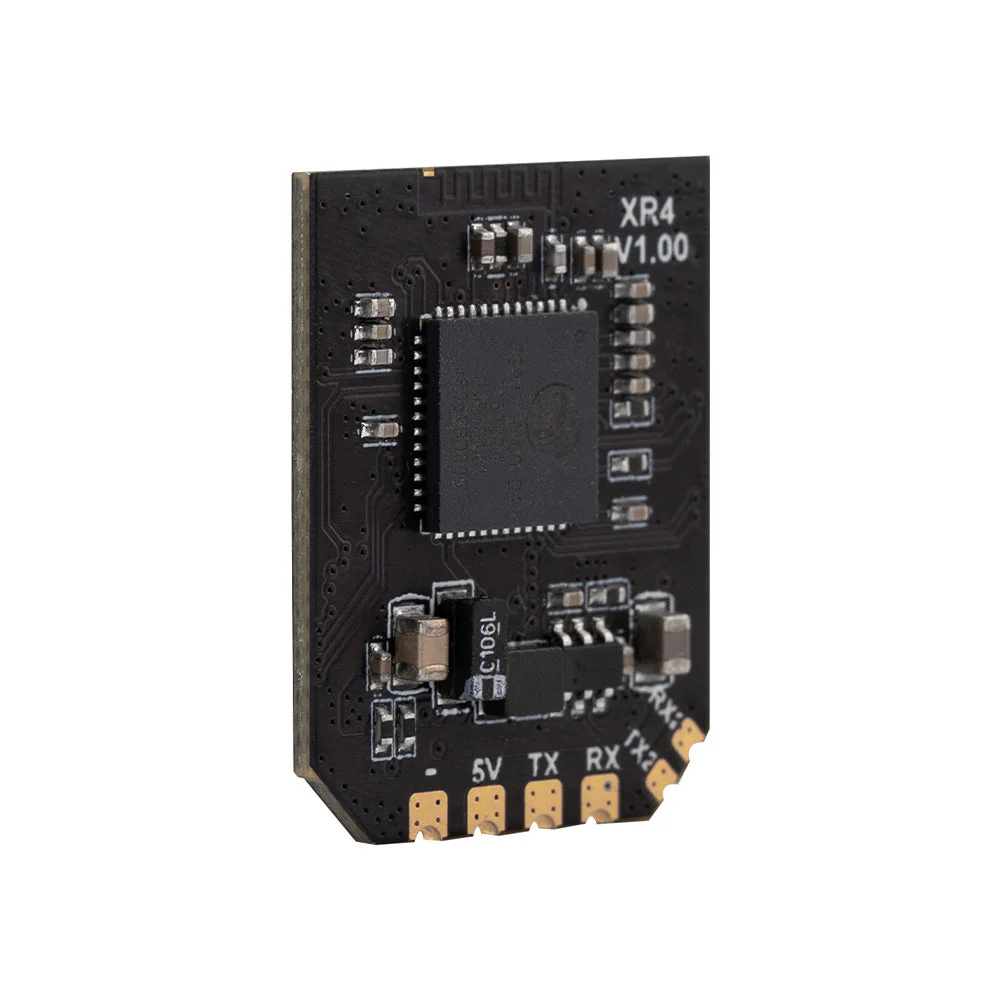

• ESP32D4 high-performance MCU
• Twin Semtech LR1121 Transceiver
• Secondary UART port for advanced functionality
• Castled pads for easy soldering

Specification

• Item: XR4 Gemini Xrossband Dual-Band Receiver
• MCU: ESP32D4
• RF Chip: LR1121 x 2
• RF connector:  IPEX-1 X 2

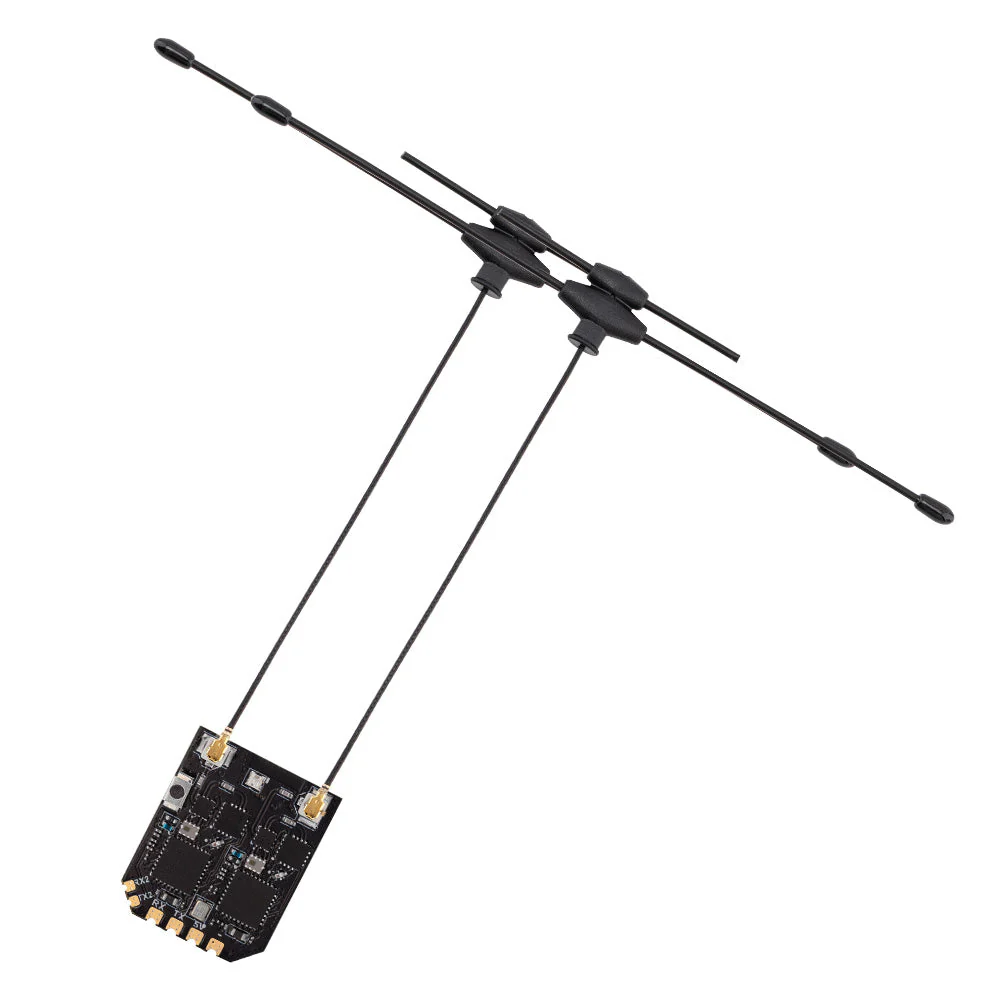

• Antenna: Dual-Band T Antenna x 2 (Included)
• Frequency Range: 2.4GHz / Sub-G 900MHz
• Telemetry Power: 100mw
• Maximum receive refresh rate: DK500Hz / K1000Hz
• Minimum receiver refresh rate: 50Hz
• Working voltage: DC 4.5 - 8.4V
• Weight: 1.7g (without antenna)
• Dimension: 22mm * 18mm * 4mm
• Firmware Version: ExpressLRS v3.5.1 pre-installed
• FW Target: RadioMaster XR4 2.4/900 Gemini RX
• Bus interface 1: CRSF
• Bus interface 2: UART

Gemini 2.4Ghz
Ant 1 = 2.4Ghz
Ant 2 = 2.4Ghz

Gemini SubG
Ant 1 = 868/915Mhz
Ant 2 = 868/915Mhz

Gemini Xrossband (Gem-X)
Ant 1 = 868/915Mhz
Ant 2 = 2.4Ghz

Weight

Dimensions

Associated Products

• XR1 Nano Multi-Frequency ExpressLRS Receiver
• XR2 Nano 2.4GHz ExpressLRS Receiver
• XR3 Nano Multi-Frequency ExpressLRS Receiver
• 2.4GHz / Sub-G 900MHz Dual-Band T Antenna
• UFL 2.4Ghz T Antenna 65mm/95mm for ELRS Receivers
• UFL 915/868MHz T & Y Antenna for BR Series Receivers

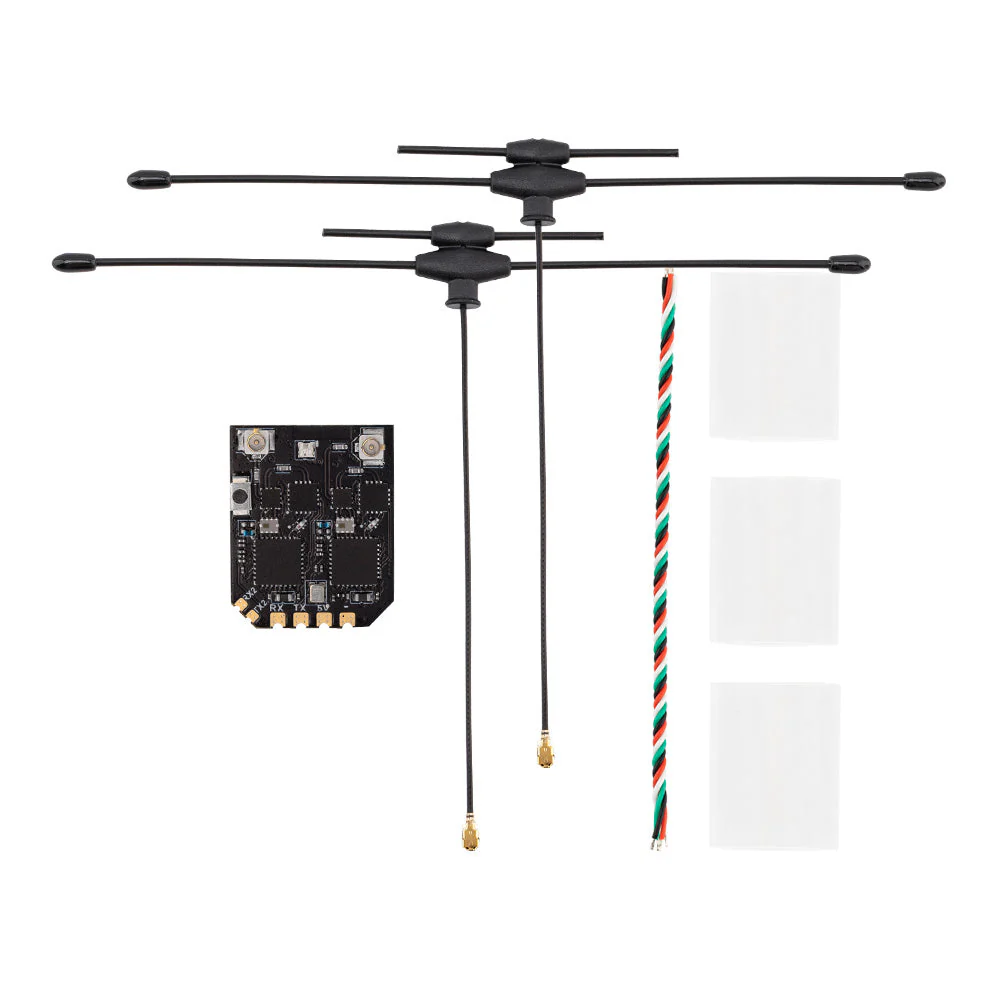

Package Includes

• 1 * XR4 Gemini Xrossband Dual-Band Receiver
• 2 * Dual-Band T-Antenna
• 1 * CRSF Wire
• 3 * Heat-Shrinkable Tube
• 1 * Manual Card

XR4 Receiver is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.

Find out more about ExpressLRS here
